TTE® PAVE – Robust traffic surfaces with 100% permeability

An innovative construction principle that combines permeable pavers with the water storage function of an infiltration trench. This allows even heavy precipitation to be absorbed in a fully decentralised manner.
TTE® PAVE - infiltratable, resilient, sustainable.
Icon Recycling
Icon Proven environmentally neutral
Icon Made in Germany
Icon TÜV-certified quality

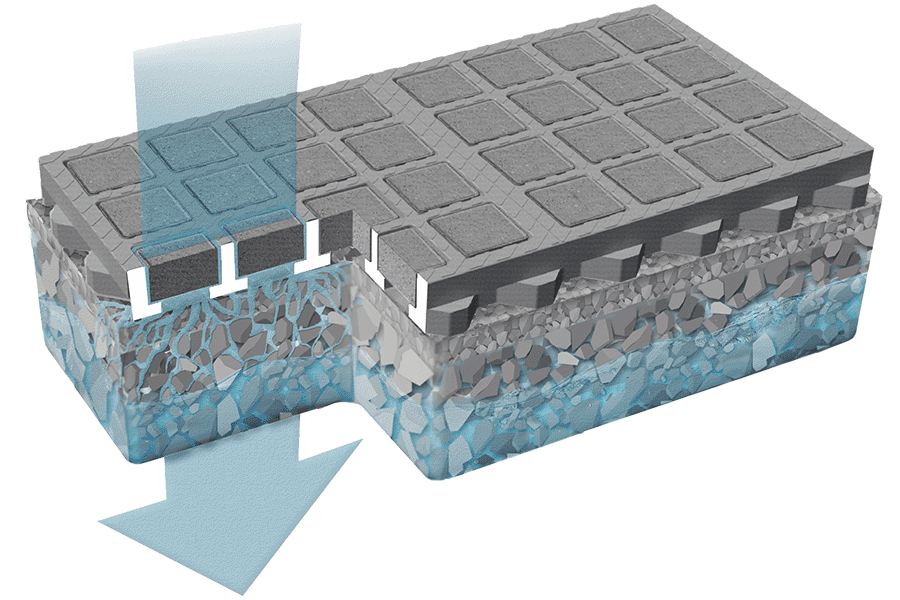

Permeable pavers & infiltration trench in one –
Manage heavy precipitation predictably and safely


Conventional water-permeable paving, such as permeable pavers and drainage pavers, are limited in terms of their permeability. Due to the fine pores in the joint filling of the permeable pavers or the concrete itself – paving stones made of porous concrete – the infiltration capacity decreases significantly, particularly after a certain period of use. Often, this means that only a small amount of heavy precipitation can be absorbed. However, for flood prevention it is crucial to reduce peak runoff.

TTE® PAVE features completely open joints as well as drainage channels and cavities, which enable a seepage capacity of 328,000 l/s*ha (average precipitation in Germany = 270 l/s*ha). Its permeability is hundreds to thousands of times higher than that of standard seepage-capable paving stones. This eliminates additional drainage measures and stormwater fees. The special composite paving plates distribute the load over a wide area. This preserves the permeability of the soil, and coarse-pored gravel mixtures can be used. These combine the function of a base course with that of an infiltration trench that stores water. By doing this, the TTE® Construction Principle PAVE 2 enables a storage capacity of more than 100 l/m², for example. Extreme rainfall events can be buffered temporarily in poorly permeable soils and seep into the subsoil with a time delay.

We issue seepage certificates at no cost for your project with planning reliability.



Innovative connection system
combines high load-bearing capacity & complete permeability


Full-surface seepage is the most efficient and simplest method for flood prevention. However, commercially available water-permeable paving stones have a low load-bearing capacity and are only able to absorb shear forces to a limited extent. Therefore, they are only used in stationary and low-traffic areas without heavy traffic. The possible percentage of water-permeable surfaces as compared to the total traffic surfaces is thus severely limited.

High traffic loads require paving that is resistant to pressure and shear forces. TTE® Permeable Paver is approved for loads caused by heavy traffic (load class SLW 60). The interlocking tongue-and-groove joint allows for three-dimensional load transfer. In this manner, vertical compressive forces are transmitted and distributed to the adjacent composite plates, and shear forces are safely absorbed by the interlocking joints. TTE® PAVE is therefore not just seepage-capable paving with a high permeability and retention capacity, but it is also suitable for a wide range of applications. Sealed surfaces are thus reduced to a minimum. This saves on stormwater fees.

Areas paved with TTE® PAVE can easily be used by trucks.
Areas paved with TTE® PAVE can easily be used by trucks.
More on the load distribution features and CO2 reduction of the sustainable TTE® system is available here

TTE® directPAVE – Complete solution
for laying by machine


We do the work for you and fill TTE® MultidrainPLUS with TTE® paving stones at the factory. This allows water-permeable paved areas to be laid quickly and easily, whether by machine or by hand. Not only does this save considerable time and effort, it also makes the solution more economical. Ideal in combination with our pre-greened TTE® directGREEN.
delivered ready-made
delivered ready-made
quick installation
quick installation
100% decentralized infiltration
100% decentralized infiltration
Stone grey
Stone grey
Ruby red
Ruby red
Anthracite
Anthracite
Anthracite mix
Anthracite mix
Sand
Sand
White
White
Grip
Grip
Experience the advantages of TTE®! Contact us for an obligation-free consultation.


Flexible combinations
with TTE® GREEN


Car park paved with TTE® PAVE and TTE® GREEN.
Want a little more greenery? TTE® MulitdrainPLUS allows you to easily combine greening and paving in a single system. TTE® PAVE can be used as parking space markings or for high-traffic areas such as lanes or footpaths. Parking spaces can be adapted to their intensity of use, or paths can be created within fire lanes. Even small-scale designs such as lines, resolved matrices or lettering are possible.
Downloads

Discover our solutions

TTE® GREEN - sustainable turf grid

TTE® GREEN


Ideal for greening

TTE® GRAVEL

TTE® GRAVEL


Reinforce gravel and crushed stone surfaces

Applications for TTE® PAVE


Rendering of the various areas of application of TTE® - from the parking lot to the fire service entrance to the residential street.
Rendering of the various areas of application of TTE® - from the parking lot to the fire service entrance to the residential street.

TTE® construction principles by load


TTE® PAVE 1
Ecological construction principle for low passenger vehicle traffic up to 3.5 t


Icon PKW
Icon PKW
  • Footpaths and bicycle lanes
  • Private passenger vehicle parking spaces
  • Private passenger vehicle access roads

TTE® PAVE 1 Ecological construction principle for low passenger vehicle traffic up to 3.5 t
TTE® PAVE 1 Ecological construction principle for low passenger vehicle traffic up to 3.5 t
  • 6 cm TTE® construction element with TTE® paving stones
  • Fine mesh
  • 5 cm bedding (1/3 - 5/8 mm grit)

TTE® PAVE 2
for passenger vehicle and occasional heavy traffic (corresponds to RStO 12 Bk 0.3)


Icon PKW and LKW
Icon PKW and LKW
  • Public parking spaces + access roads
  • Fire department access roads/driveways
  • Yard paving
  • Service roads
  • Agricultural roads
TTE® PAVE 2 for passenger vehicle and occasional heavy traffic (corresponds to RStO 12 Bk 0.3)
TTE® PAVE 2 for passenger vehicle and occasional heavy traffic (corresponds to RStO 12 Bk 0.3)
  • 6 cm TTE® construction element with TTE® paving stones
  • Fine mesh
  • 3-5 cm bedding (2/5 mm grit)
  • 25-30 cm water-permeable gravel base course (0/32 - 0/45 mm)
  • Without incline: Gravel mixture (2/32 - 2/45 mm) / infiltration trench base course


TTE® PAVE 3
for heavy traffic up to 40 t (up to RStO 12 Bk 1.8)


Icon LKW
Icon LKW
  • Residential roads
  • Truck and bus parking areas
  • Commercial storage yards and access roads
  • Service roads at highway service stations
TTE® PAVE 3 for heavy traffic up to 40 t (up to RStO 12 Bk 1.8)
TTE® PAVE 3 for heavy traffic up to 40 t (up to RStO 12 Bk 1.8)
  • 6 cm TTE® construction element with TTE® paving stones
  • Fine mesh
  • 3-5 cm bedding (1/3 - 5/8 mm grit)
  • 25-30 cm water-permeable gravel base course (0/32 - 0/45 mm)
  • Without incline: Gravel mixture (2/32 - 2/45 mm) / infiltration trench base course

Experience the advantages of TTE® PAVE!
Contact us for an obligation-free consultation.
